Stainless Smooth Bore Hose
When Standard Hoses Just Don’t Cut It
Some applications demand more than a standard hydraulic hose can handle. Extreme temperatures, aggressive chemicals, or contamination risks can quickly break down conventional hose materials — leading to failure, downtime, and costly repairs.
Features of Stainless Smoothbore PTFE Hose
Engineered for Heat, Chemicals & Performance

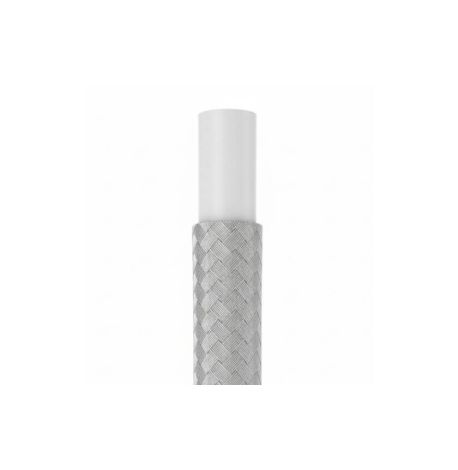

The SAE100R14 Stainless Smoothbore Hose is built using a PTFE (polytetrafluoroethylene) inner tube, delivering exceptional performance in the harshest environments.
- Inner Tube: Sintered PTFE for maximum chemical and temperature resistance
- Reinforcement: 304 stainless steel braid for strength and durability
This combination provides long-lasting reliability, even in applications where other hoses fail.
INNER TUBE: Sintered tube of polytetrafluoroethylene (P.T.F.E)
REINFORCEMENT: Single braid of 304 series of stainless steel wire
SPECIFICATIONS: Meets SAE 100R14 / SAE J517
APPLICATION: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration.
Therefore the hose is used generally in applications where all or one of the above properties is the main criteria
TEMPERATURE RANGE: Continuous: -54°C to +260°C
FITTING TYPE: Suits S Series Fittings
Ready for Harsh Conditions?
When your application demands extreme temperature resistance, chemical durability, and long-term reliability, the stainless smoothbore PTFE hose delivers.
