Thermoplastic Hose
Electrical Risk Isn’t Something You Can Ignore.
In high-voltage environments, using the wrong hydraulic hose can create serious safety risks. Conductive hoses can expose operators and equipment to electrical hazards, especially in elevated work platforms and high-tension areas.

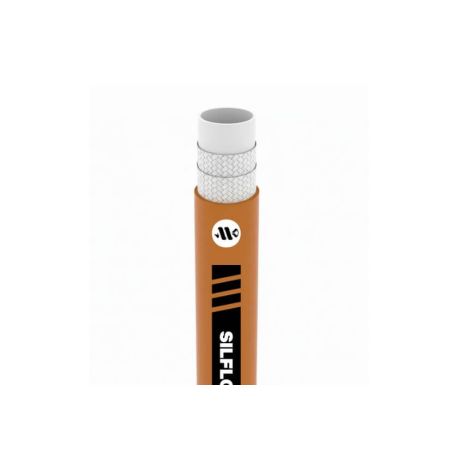

Features of SAE100R7 Non-Conductive Thermoplastic Hose | SILFLO
INNER TUBE: Polyester elastomer
REINFORCEMENT: One high tensile polyester braid
OUTER COVER: Oil and weather resitant polyurethane, pin pricked.
SPECIFICATIONS: Meets or exceeds SAE 100R7, EN 855, ISO 3949, ANSI A92.2
APPLICATION: Medium-pressure hydraulic hose designed for petroleum or synthetic-based fluids. Ideal for applications requiring high electrical insulation and non-conductivity in high-tension environments.
TEMPERATURE RANGE: -40°C to +100°C. Not to exceed +65°C for air and water based fluids.
FITTING TYPE: Suits S-Series Hosetails
Protect Your Equipment — and Your Team
When working around high voltage, safety comes first. The Non-Conductive Thermoplastic Hose provides the insulation, durability, and reliability needed to operate with confidence.
